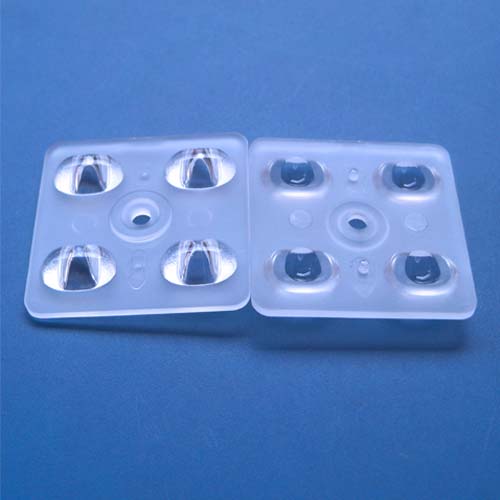

70x140degree square 37mm 4in1 asymmetric street lighting LED lens for SMD3535,3030,3528 LEDs(HX-F37-14070)

70x140degree square 37mm 4in1 asymmetric street lighting LED lens for SMD3535,3030,3528 LEDs(HX-F37-14070)
  • Model:HX-F37-14070
  • Dimensions£º37.0x37.0 H5.31mm
  • Transmittance£º93%
  • For LED£º3030|3528|3535
  • FOV£º70(¡À5)*140(¡À5)deg
  • PDF£ºLed Lenses-HX-F37-14070.pdf
  • PDF link£ºDownload
  • Release Date:2017-07-10
  • Visits:

Product Description

Part No. HX-F37-14070
Size 37.0 x 37.0 H5.31mm
Materials Lens£ºPMMA
Holder:without
Transmittance 95%
Surface Treatment Polishing surface
Beam Angle 70(±5) x 140(±5)degree
Holder Color without
For LEDs OSRAM 3528,3030,3535;
Luxeon 3528,3030,3535 ;
Nichia 3528,3030,3535;
Seoul 3528,3030,3535 ;
Prolight 3528,3030,3535 ;
SMD 3528,3030,3535
Fixing Method Glue (Optional);
Tape (Optional)
RoHS/SGS-Compliant Yes
