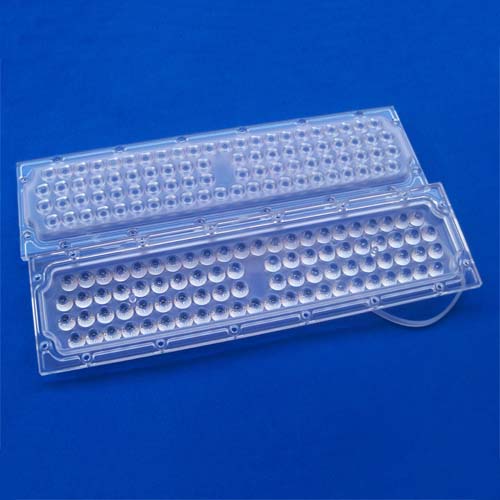

40degree 84in1 LED lens for CREE XPE,Luxeon 3030 2D, 3535,3030 LEDs(HX-252C-40L)

• Model:HX-252C-40L
• Dimensions：L252*W70*H5.4mm
• Transmittance：93%
• For LED：CREEXPE|OSLON
• FOV：40deg
• PDF：Led Lenses-HX-252C-40L.pdf
• PDF link：Download
• Release Date:2017-07-10
• Visits:

Product Description

Part No.	HX-252C-40L
Size	L252 x W70 x H5.4mm
Materials	Lens：PC Holder: without
Transmittance	95%
Surface Treatment	Beads surface
Beam Angle	40 degree (FWHM)
Holder Color	without
For LEDs	CREE XP-E,XP-G/G2; CREE XT-E;XPL,XHP35 ; OSRAM SSL80,SSL150,Square; Seoul Z5P,Z5M; Luxeon T,XR/XT,Federal 3535,; LG 3535, Samsung 3535; Nichia 119A,757G; 2525,3030 2D,3030,3535
Fixing Method	Glue (Optional); Tape (Optional)
RoHS/SGS-Compliant	Yes
Purchase	info@opticsledlens.com
Technical Information
