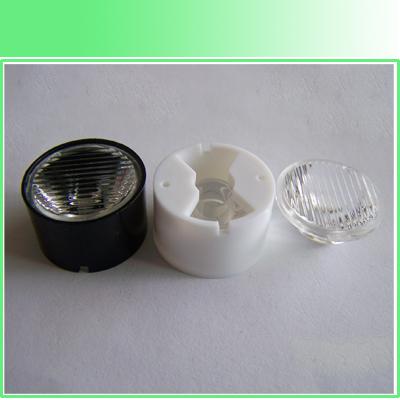

street lights lens (HX-22.5-25F1)

Product Description

Model: HX-22.5-25F1
Dimensions:
Lens: Φ22.56mm  H10.98mm
cylinder holder: Φ23.85mm  H13.50mm
bipod striped cylinder holder: N/A
Materials:
Lens: Optical Grade PMMA  PC
Holder: ABS
Assembly Dimensions:
Lens with cylinder holder: Φ23.85mm H13.50mm
Lens with bipod striped cylinder holder: N/A
Surface Treatment: Stripes surface
Beam Angle: 20(±5)*55(±5)deg
For Led: Luxeon  Edixeon  Seoul
Certification: SGS   RoHs

Features:
High efficiency
Available in 1 beam Patterns
Optimized for uniform effects
Lens with holder
Typical applications:
Stage lighting
Street lights
Decorative light
Architectural lighting
Down light
Flashlight
